Ointment Preparation Station

NJ011

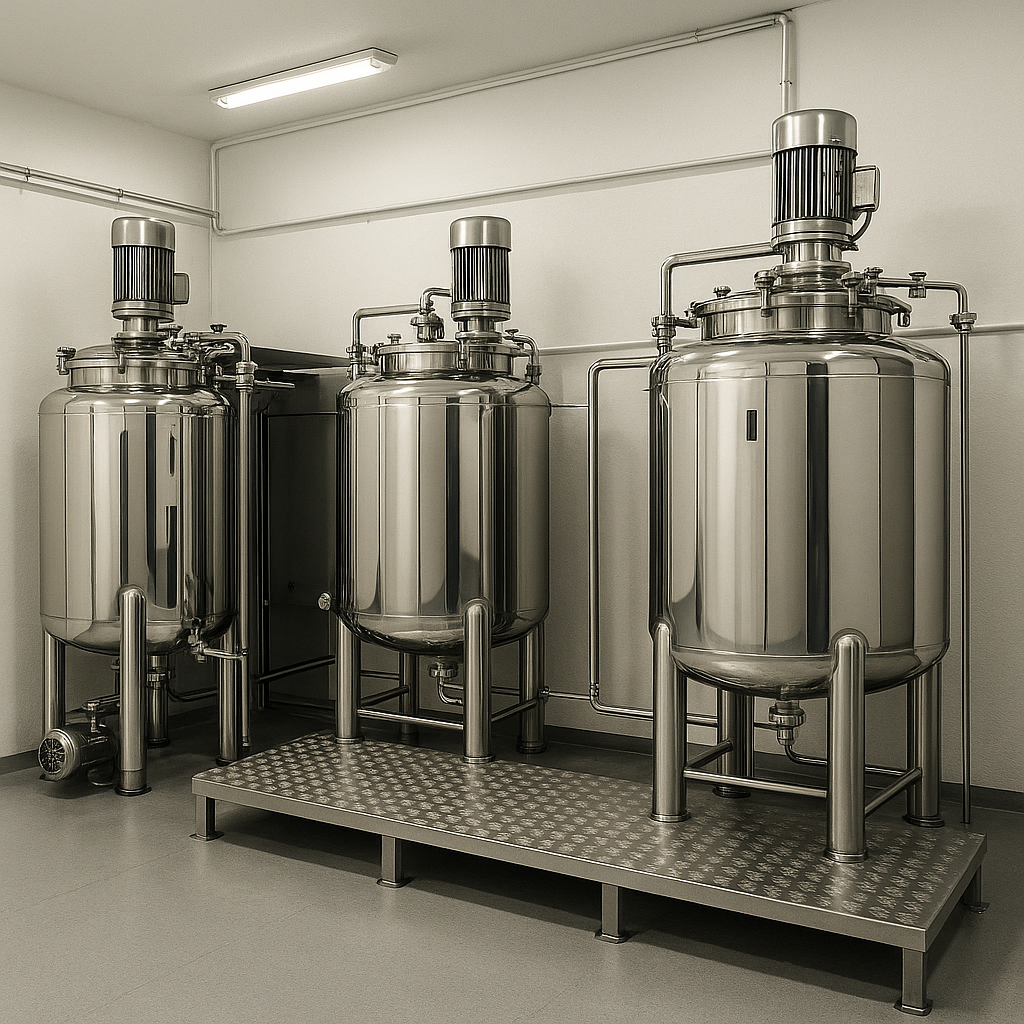

The NJ011 Preparation Station is an advanced processing system specifically engineered for the production of creams, ointments, gels, and shampoos. It operates across three distinct phases (oily, watery, and main) to ensure complete homogenization and ingredient integration. The system is designed to deliver precise control over temperature, mixing speed, and pressure during every stage of formulation. High-efficiency mixers and a powerful bottom homogenizer allow for smooth, lump-free textures even in highly viscous products.
Key Features
- Heating via electricity or steam
- Automatic heating and cooling dynamic
- Additive inlet for mid-process dosing
- Integrated weight cells, pressure and temperature gauges
- Equipped with CIP system
Model | NJ011 |
Structure Material | SS316 (contact parts), SS304 (chassis) |
Capacity | 250 L (customizable) |
Insulation | 5cm fiberglass |
Electrical Capacity | 10.5 kW |
Control System | PLC with HMI |
